Default The "M" House - Razed and Rebuilt Detached Carriage House/Barn - Start to Finish

Greetings fellow garage enthusiasts,

First, thanks to all who posted before me. I've lurked for more than a year during my build project, and have learned much and been inspired with each thread I've read.

I thought I should take the time to document my build along the way, and give something back in appreciation. This is my first post.

Second, there are a variety of purposes and uses that motivate garage projects that I've seen posted here. Some are purpose built working shops, some are parking places (usually attached to the house) with family storage requirements and all kinds of space limitations, others are full on guy retreats, and others still, are museums for car collections. Some are mixtures. All are cool in their own way, but require special, very different design considerations depending on what you have to work with, and what it is that you want out of the space.

My build is a sorta' a combination of all of these things put together, but in a detached barn-like form, re-built from the ground up after razing an existing structure that no longer met my needs.

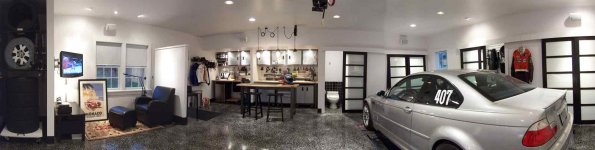

2 shots of the "rear garage":





(Edited December 7th, 2008: Inserted "non attachment" photographs for the benefit of non members/lurkers -E46M3)
Attached Images
File Type: jpg 1 100_1062.jpg (53.8 KB, 4062 views)
File Type: jpg 2 100_1063_b.jpg (31.5 KB, 2795 views)
__________________


M3: Kirk Racing 4 point competition cage, Safecraft 2.5lb Halon 1211 fire bottle, Borla cat back exhaust, Shark Injector 93/8000, AFE Magnum cold air intake, Schroth Ralle 4 Pro HANS harnesses, stainless braided brake lines, ATE Super Blue brake fluid, Cobalt Friction brake pads XR1 front Spec VR rear, Totyo R888 18/265, TC Design foldable tow hooks, Rouge Engineering transmission mounts...and lots of other stuff my wife doesn't care about.
My
Garage Build Thread: The "M" House.



Last edited by E46M3; 09-12-2013 at 09:48 AM. Reason: inserted "non attachment" photographs
E46M3 is offline   Reply With Quote
Old 11-16-2008, 07:29 AM   #2
E46M3
Senior Member

E46M3's Avatar

Join Date: Jan 2007
Location: Northeast, Upstate New York
Posts: 175
Default Re: The "M" House - Razed and Rebuilt Detached Carriage House/Barn - Start to Finish

The nearly finished "M house" project.
(The entire process is documented below)

I haven't really moved in yet, the neon signs aren't on the walls yet, and the final exterior landscaping, and assorted plants and trees won't be placed or completed 'till later, and...ect, ect, ect. - o.k. - it won't really ever be done... now will it - might as well post now...

(I've waited to serve up pictures till near completion so if this build isn't of interest to you, you needn't read four months of progression updates to find out.)
Attached Images
File Type: jpg 3-100_1071.jpg (63.5 KB, 5731 views)
File Type: jpg 4-100_1080.jpg (50.3 KB, 4859 views)
File Type: jpg 5-100_1087.jpg (42.0 KB, 4938 views)
File Type: jpg 6 100_1092.jpg (68.7 KB, 4557 views)
File Type: jpg 7 100_0945.jpg (40.5 KB, 4383 views)
File Type: jpg 8 100_1063.jpg (52.2 KB, 5587 views)
File Type: jpg 9 100_1064.jpg (61.7 KB, 6067 views)
__________________


M3: Kirk Racing 4 point competition cage, Safecraft 2.5lb Halon 1211 fire bottle, Borla cat back exhaust, Shark Injector 93/8000, AFE Magnum cold air intake, Schroth Ralle 4 Pro HANS harnesses, stainless braided brake lines, ATE Super Blue brake fluid, Cobalt Friction brake pads XR1 front Spec VR rear, Totyo R888 18/265, TC Design foldable tow hooks, Rouge Engineering transmission mounts...and lots of other stuff my wife doesn't care about.
My
Garage Build Thread: The "M" House.


E46M3 is offline   Reply With Quote
Sponsored Links (Register now to hide all advertisements)
Old 11-16-2008, 07:33 AM   #3
E46M3
Senior Member

E46M3's Avatar

Join Date: Jan 2007
Location: Northeast, Upstate New York
Posts: 175
Default Re: The "M" House - Razed and Rebuilt Detached Carriage House/Barn - Start to Finish

The Quick Specs:
Detached tandem design, 4 car garage (more on why it's a tandem later in this thread.)
Front 2 car garage - 26' wide x 24' deep, with 2, 9'4" doors openings, interior walls clad in OSB, and will get painted white...when I get around to it eventually
Rear 2 car garage - 31' wide x 26' deep, with 1, 20' insulated garage door separating front from rear garage space, finished drywall, insulated walls, ceiling, floor, and insulated foam exterior foundation, with in-block vermiculite insulation, and in floor radiant heat.
Bike and toy storage wing - 11" wide x 18"4" deep, 6' exterior garage door (mandatory design requirement was to keep toy stuff storage away from the cars.) interior walls clad in OSB with a partial peg-board wall, and will also get painted
Garden tractor and garden tool storage wing - 12' wide x 14'-4" deep, 8' exterior garage door, walls left unclad on two sides
5 garage doors total, Wayne Dalton brand, all with Lift-Master electric openers, key pad outside openers, all exterior doors with hinge and carriage style door pull hardware

Total Depth of structure; 51'10"
Total Visible Front Span; 37' wide
Around 1800 sq. feet of covered space in total

Other Details:
Foundation; 6-7 course block on continuous concrete footers, with foundation drainage, and buried gutter drainage pipe running in ground to daylight, 220 feet away, downhill.
4000 psi concrete, 4" to 8" in depth - depending on the location, waterproof top sealed where not epoxy coated
806 sq feet of epoxy for rear garage floor, black base color with white and grey flecks, with anti slip additive and UGloss-AF clear coat, U Coat it brand
In floor radiant heating, rear garage only, natural gas fired boiler, stainless steel - roof vented, 2 zone
Bend Pack p-6-f in floor (flush mount) mid rise lift with a lifting capacity of 6,000 lbs, hydraulic lines run under floor through PVC pipes, hidden "flow diverter" in floor, covered with steel plate and epoxy-ed to match the floor
Hot and cold running water, rear garage, natural gas fired 15 gal. hot water heater
Bathroom, black tile up to 48", white grout (small, but required - see beer fridge requirement)
Cable TV (with Speed Channel,) Wireless DSL internet, phone lines, 4 speaker wall mounted sound system, Sony amp, NAD preamp
6 Gladiator 24" wall cabinets, 2- 6' maple topped work tables, and 1- 8' maple work table with power strip, Gladiator 3/4" x 1' tongue and groove slat-wall Gear Wall systems covering 3 closet and work area walls, Gladiator 4' Gear Track sectional track for specific wall sections, 3 Gladiator rolling under table cabinets with maple tops... a bazillion hooks, bins, shelves, baskets... (all of the above purchased during "Special Today Only Sales!" at either Lowes or Sears)
Craftsman Professional 3.5-hp Shop Compressor, 25 gallon tank, 175 psi, copper extension pipe over the lift to ceiling mounted hose reel sourced from Griot's Garage, various T valves, shut offs, quick releases, with in-line moisture control etc... (used primarily to loosen/tighten lugs and adjust tire pressures, every so often, maybe a ratchet or something - but decidedly non hardcore applications)
3, 30 ft. retractable ceiling mounted extension cord reels
Bissel wall mounted bag-less shop/utility vac with 30' hose, and a ton of attachments
3 way exterior lights, switched from main house, and 2 points in garage
Switched outlets for neon signage - 3, 20 gauge steel neon signs (from Garage Art)
Wall clock (Texaco) from Retro Planet, set in recessed "clock outlet," a single plug recessed outlet with cord storage in the wall.
Recessed lighting, 3 zones, 6" and 4", both direct and eyeball fixtures, 2.5+ watts per sq. foot general lighting, all on dimmers, augmented by various task lights, pendants, and "0 degree" fluorescent mounted fixtures in both heated and unheated spaces throughout the structure.
Exterior lighting from "Barn Light Electric" featuring 4 goose neck mounted radial wave fixtures and 2 sconces, face mounted, all with clear glass heavy dome bulb covers and wire guards, surfaces powder coated black with white reflective undersides.
7, Home Depot sourced, 5 light frosted glass doors, painted black, back light illuminated with switched recessed cans in storage spaces, doors mounted on sliding tracks - no doors open into the work space.
Carpet tiles from Florz (not yet installed)
HDTV, 1080i LCD flat screen TV mounted on a swing arm
Beer fridge - this is of course, a mandatory.
__________________


M3: Kirk Racing 4 point competition cage, Safecraft 2.5lb Halon 1211 fire bottle, Borla cat back exhaust, Shark Injector 93/8000, AFE Magnum cold air intake, Schroth Ralle 4 Pro HANS harnesses, stainless braided brake lines, ATE Super Blue brake fluid, Cobalt Friction brake pads XR1 front Spec VR rear, Totyo R888 18/265, TC Design foldable tow hooks, Rouge Engineering transmission mounts...and lots of other stuff my wife doesn't care about.
My
Garage Build Thread: The "M" House.


E46M3 is offline   Reply With Quote
Old 11-16-2008, 07:43 AM   #4
E46M3
Senior Member

E46M3's Avatar

Join Date: Jan 2007
Location: Northeast, Upstate New York
Posts: 175
Default Re: The "M" House - Razed and Rebuilt Detached Carriage House/Barn - Start to Finish

(56K death from here on)

Select shots of the entire process,
from demolition, to design, to rebuilding, to nearly completed:




The original garage; (Ahwww, isn't it cute...)
The blue tape on the center door post represents one linear foot.

Statement of need: I have 3 cars and a 2 car garage, my wife had to turn sideways to get out of her car door in the above garage, the old garage floor was so pitted and cracked you could not roll a floor jack on it, the structure no longer kept out vermin (my ski boots were filled with black walnuts last season,) the garage floor had been undermined by a family of woodchucks, the potting shed's exterior walls were actively growing moss (a separate outbuilding in the back yard behind the garage,) I was filling the basement with spare tires, race tires, fluids, garden hoses and car parts I didn't want to freeze in the winter, my children have amassed a small sporting goods store worth of "stuff," and so - one day, my wife said - "honey, I think we should think about rebuilding the garage...."

You only have to suggest such a project - once.

The demolition process:



Cute or not, it's going to get crushed. Everything was cleared out, and stuff we don't use daily was stored offsite in "door to store" pod-like containers, or (like the extra car) the local U-Store-it facility. We salvaged and reused an old window my wife liked, but other than that, the whole thing got flattened in a demolition process that took only about a half hour.



Reduced to kindling... the potting shed in the background is next up on the Case CX160's morning agenda...



The wood, metal, and concrete pad debris was hauled off in a big red 10 wheel dump-truck the same day. The grading of the site then got leveled (a little bit) to keep the floor levels within the hight of a single concrete block from the front to the back of the structure - which is about 50 feet. Any more leveling would have required a retaining wall in the back, which I didn't want. At the very back is a separate "garden tractor wing" which has a slightly different, higher, floor level than the main car garages. This wing has its own entrance, so you cant even see the change in floor levels.

(No, he didn't let me drive it, citing various "insurance restrictions," coupled with the fact that I had no f$#&ing idea what I was doing. He took the keys with him at night. I can attest to this fact... because I checked.)

The design process:



This is a sketch my wife did (based on a few of my early form studies to get started) so we both agreed on the shape. It changed a little from here...but this was the starting point. It's rather helpful that both my wife and I can draw. We could sketch our thoughts, and get everything kinda' the way we thought it should be before we even called in our architect.



My original early sketch of the new barn's floor plan based on some of our early exterior renderings...
and this is pretty much what got built.



...here's an example of an early sketch I did of one of the interior elevations... again, stuff moved, but it moved while on paper with an erasure, and not while the job was going up with a crowbar. This also helped my contractor understand what I was planning, and estimate accurately, and that's a good thing.

(Note: Don't try that center Gladiator setup up at home - 'cuz it wont work, and that's the point of the early sketching. I post this because I believe in the "work it out on paper" method. I liked the top cabinet layout that I drew, but wanted the rolling cabinets at the bottom - that I also drew in the same layout - and you can't have both if you do the math. The top needs to be 4 - 24s", not the 2 - 24s" and 2 -30s. Try this - and you'll be 6" too wide on each side on the bottom. I redid the sketch with everything worked out, choosing the bottom setup as the lead, and while I was at it, I moved the bathroom in the final drawing.)
__________________


M3: Kirk Racing 4 point competition cage, Safecraft 2.5lb Halon 1211 fire bottle, Borla cat back exhaust, Shark Injector 93/8000, AFE Magnum cold air intake, Schroth Ralle 4 Pro HANS harnesses, stainless braided brake lines, ATE Super Blue brake fluid, Cobalt Friction brake pads XR1 front Spec VR rear, Totyo R888 18/265, TC Design foldable tow hooks, Rouge Engineering transmission mounts...and lots of other stuff my wife doesn't care about.
My
Garage Build Thread: The "M" House.



Last edited by E46M3; 09-11-2013 at 04:08 PM.
E46M3 is offline   Reply With Quote
Old 11-16-2008, 07:46 AM   #5
E46M3
Senior Member

E46M3's Avatar

Join Date: Jan 2007
Location: Northeast, Upstate New York
Posts: 175
Default Re: The "M" House - Razed and Rebuilt Detached Carriage House/Barn - Start to Finish

Working with my architect: I did an elevation drawing of each side of the outside of the garage to scale, and three of the interior "back garage" wall elevations, spec-ed all the fixtures, doors, sinks, door pulls, the electric switch locations and switch functions, lighting fixture and outlet placements, ect., and turned them over to an architect who worked out the engineering for the roof trusses, and got everything to code for the "stamped drawings" we needed for the permits and approvals. (My conjecture is, few of you will want to do all this - but I can draw, so I did.)

I paid my architect "by the hour" for his specific services, not by a percent per square foot of the structure for design, which is customary. He only asks that, in addition to his limited hourly rate, that I invite him over for a beer when it's done, and that he favors a cold lager.

I can do that.



Special Considerations: My garage project accompanies a circa 1881 historically "designated" farm house - the build required architectural review from the town for a "certificate of architectural appropriateness" for both design and materials. My house is a historic landmark of sorts, which comes with legal and permit issues. (Any building or zoning permit requested within 1000 feet of my house must undergo a similar review by law. A metal "outbuilding" would be deemed architecturally unsympathetic, and thus would not be granted a permit. Please note: I like old houses, so I'm OK with this stipulation, but this mandate also applies to 8 neighboring houses. I have witnessed proposed architectural submissions for neighboring projects get outright denied based on proximity to my house during town zoning meetings.)

The tandem choice: A 3 or 4 door wide garage, even in the rear, would have overpowered the main house from an aesthetics perspective. Additionally, it would have consumed too much of the backyard, which is commonly utilized by my children, and much of the neighborhood for soccer games, et al. So, although problematic in its own way, a tandem design was chosen.

My house originally had a large barn about 15 feet from the current garage build site, the foundation of which is still visible. A barn-like form was thus chosen, and designed to look as if it "rambles" and may have been added on to a few times during its history - just like the main house. The siding choices reflect that decision, a combination of clapboard, and board and baton. My wife grew up on a farm with "cow milking" outbuilding, and "tobacco" barns, and "horse barns" - she drew in the hay loft door on the original sketch, and it stayed as the inspiration for other decisions throughout the design process.
__________________


M3: Kirk Racing 4 point competition cage, Safecraft 2.5lb Halon 1211 fire bottle, Borla cat back exhaust, Shark Injector 93/8000, AFE Magnum cold air intake, Schroth Ralle 4 Pro HANS harnesses, stainless braided brake lines, ATE Super Blue brake fluid, Cobalt Friction brake pads XR1 front Spec VR rear, Totyo R888 18/265, TC Design foldable tow hooks, Rouge Engineering transmission mounts...and lots of other stuff my wife doesn't care about.
My
Garage Build Thread: The "M" House.



Last edited by E46M3; 09-11-2013 at 04:09 PM.
E46M3 is offline   Reply With Quote
Old 11-16-2008, 08:02 AM   #6
E46M3
Senior Member

E46M3's Avatar

Join Date: Jan 2007
Location: Northeast, Upstate New York
Posts: 175
Default Re: The "M" House - Razed and Rebuilt Detached Carriage House/Barn - Start to Finish

Construction begins:



...utilities get run from the main house (gas, electric, phone, cable, and sewer tie-in) and 5' deep trenches are cut for the footers reflecting the barn's foundation footprint... I start having WWI trench warfare flashbacks in my own backyard... (this is shot through a screened window, sorry.)





...footers poured, and starting to lay out the foundation block...



...foundation block laid-up, board insulation now gets placed against the foundation...
(while my wife can draw, she is often not acutely attune to scale. This is the point in the process she notices what we had drawn together, is actually very, very big... Why yes honey, it certainly is.)



...foundation drainage installed, separate gutter pipe runs are in, vermiculite in block insulation in the back garage (the back looks like the middle in this shot), foam foundation block insulation done, gravel backfill, and then soil backfilled...



...the structure starts - and goes up quick - the front elevation begins to take shape on the second day of framing...



...the trusses show up... as does a slow moving cold front with high winds, rain and thunder clouds...



...trusses hoisted over the garage spans... waiting for the high winds to subside so we can get them upright without each successive truss cascading into the next towards the earth like dominoes ... we wait.



blue skies...and the roof finally goes up...



...side elevation takes form... the "mechanics entrance" to the rear garage is the door visible in the center, and the roof shingles get hauled to the peaks for installation... the large opening to the right is for the bikes, the larger door partially in view to the left rear is for the garden tractor.



...prepping for the first pour... with so much concrete, we decided to get the structure up first, so the concrete would cure in a more controlled covered setting without interference from cold rain or hot sun... to facilitate many rolling things, the rear garage has no crack control joints, by design. That design however, required a careful, calculated cure. We'll see how that works in 5 years.



...a section of the front garage floor, still drying - the rear garage floor section was poured about a week later... the front 2 bay garage floor has a slope towards the 2 front garage doors (on the left,) while the "bike and toy" storage wing (seen through the 5' opening) slopes the opposite direction towards its garage door opening to the right. This made for some concrete feathering fun where the 2 slopes crossed... its invisible now, but attention was required.



...the Bend-Pack p-6-f mid rise lift shows up... I got the unit on site before we poured the rear garage floor, as this lift is designed to sit flush with the finished floor level. While I was able to obtain the installation instructions during the design phase, there were more questions posed by the instructions than answered; "STEP 5: install the 3 hydraulic lines to the flow diverter under concrete floor." Gee, very informative...thanks a bunch.



meanwhile...all 5 garage doors go on... all with electric openers triggered inside and out (with my wife's door being controllable from 5 separate locations... really...not kidding... 'cuz she has an apparent aversion to closing the *&%$#@!+ garage door - I've designed out potential excuses) and the windows (and all but 1 door) get installed to start to seal the building...

__________________


M3: Kirk Racing 4 point competition cage, Safecraft 2.5lb Halon 1211 fire bottle, Borla cat back exhaust, Shark Injector 93/8000, AFE Magnum cold air intake, Schroth Ralle 4 Pro HANS harnesses, stainless braided brake lines, ATE Super Blue brake fluid, Cobalt Friction brake pads XR1 front Spec VR rear, Totyo R888 18/265, TC Design foldable tow hooks, Rouge Engineering transmission mounts...and lots of other stuff my wife doesn't care about.
My
Garage Build Thread: The "M" House.



Last edited by E46M3; 09-11-2013 at 04:15 PM.
E46M3 is offline   Reply With Quote
Old 11-16-2008, 08:06 AM   #7
E46M3
Senior Member

E46M3's Avatar

Join Date: Jan 2007
Location: Northeast, Upstate New York
Posts: 175
Default Re: The "M" House - Razed and Rebuilt Detached Carriage House/Barn - Start to Finish

Planning for the Bend-Pack p-6-f mid rise lift:



...another quick sketch (1 of 4 for the lift set-up) to locate the lift in the rear garage... this helped determine the plumbing pipe runs to hold the hydraulic lines, determine the shape and size of the 2"x4" concrete forms, and the forms placement within the space, and ensure when the car was in the air, I had space around the car to work. The lift moves the car back 14" in the process of the lift. Additionally, the lifting points on the M3 make contact with the last 2 inches of the lift's fixed base unit.

The good news is, I can simply drive in, hit a predetermined parking point on the floor (marked with a small parking stop,) and without adjusting any lift arms, loosen the lugs, raise the lift in 30 seconds, slip the track tires off the fixed studs, slip the waiting street tires over the studs, re- set the lugs, set the car down, and fine tune the lugs to torque specs. This lift works well for me given the rather limited and specific tasks I require. The bad news is, you better get the placement right when you set it, because it's not all that adjustable later on.



...the rear garage gets its floor insulation, radiant heat tubing - and the lift form gets started...



...the lift form gets plumbed to run the hydraulic lines through the concrete to the flow diverter which splits the pressure between the two lift pads, and an 11' hydraulic line to the control unit mounted just behind a closet door opening. The center small flow diverter hole (center top of the form with the blue foam walls) will later get covered with a flush epoxy coated removable cover. Excess hydraulic lines will be coiled and fit in an opening inside the lift's base - an opening I didn't know was even there until the lift got on site, and so now I know.
__________________


M3: Kirk Racing 4 point competition cage, Safecraft 2.5lb Halon 1211 fire bottle, Borla cat back exhaust, Shark Injector 93/8000, AFE Magnum cold air intake, Schroth Ralle 4 Pro HANS harnesses, stainless braided brake lines, ATE Super Blue brake fluid, Cobalt Friction brake pads XR1 front Spec VR rear, Totyo R888 18/265, TC Design foldable tow hooks, Rouge Engineering transmission mounts...and lots of other stuff my wife doesn't care about.
My
Garage Build Thread: The "M" House.



Last edited by E46M3; 09-11-2013 at 04:16 PM.
E46M3 is offline   Reply With Quote
Old 11-16-2008, 08:17 AM   #8
E46M3
Senior Member

E46M3's Avatar

Join Date: Jan 2007
Location: Northeast, Upstate New York
Posts: 175
Default Re: The "M" House - Razed and Rebuilt Detached Carriage House/Barn - Start to Finish

The start of the finish:



...the outside starts getting its siding... still unprimed... adjusting the grade will get done by the landscaper later, so, some of the ground levels don't make contact with the structure in the right spots yet...



...been busy inside - concrete poured in the rear garage (lift form still in place,) ceiling and wall insulation went in, electrical rough is done, and drywall up... bang.





...clapboard all up now and getting its primer coat... the barns broken up " it's been added-onto a few times" type forms become more apparent now that the siding is up...



...the very back of the main house which has some of the same "added-onto" design qualities...








...drywall gets taped and sanded in the rear garage. The front garage and bike/toy storage area will get sheathed with solid OSB, to be painted later.



...a view with the "4th wall" (garage door) down... this door opens into the front garage bays so the working garage has no overhead obstructions for the lift or the recessed lights, or ceiling hose reels. The small green specks of tape on the door are placement indicators for historic art mural poster from the mid 30's, which will go up later, but these marks are to help guide the electrician's placement of the 4" eyeball lights which will illuminate them.

One very cool aspect of this design is that just about anything sticks to this wall with a magnet - my autocross car numbers, race class designations, and various car stickers are all on magnetic stock - so the car can return quickly to a normal looking vehicle when not on track - and I can store them here. I can stick work-lights anywhere, install a whiteboard, or stick up small photographs with magnetic clips. Everything can be moved or rearranged at will.



...a front view, placing a hinge on the door as a visual test, now all primed, no cupola yet, but the "hay door" is in - but without its hardware, lights have arrived, but are still in the boxes, and won't go up until the finished painting is done...



...the work in progress barn in context behind the main house - shot 3/4 view... from the head on view of the house, you can barely see the barn structure.
__________________


M3: Kirk Racing 4 point competition cage, Safecraft 2.5lb Halon 1211 fire bottle, Borla cat back exhaust, Shark Injector 93/8000, AFE Magnum cold air intake, Schroth Ralle 4 Pro HANS harnesses, stainless braided brake lines, ATE Super Blue brake fluid, Cobalt Friction brake pads XR1 front Spec VR rear, Totyo R888 18/265, TC Design foldable tow hooks, Rouge Engineering transmission mounts...and lots of other stuff my wife doesn't care about.
My
Garage Build Thread: The "M" House.



Last edited by E46M3; 09-11-2013 at 04:23 PM.
E46M3 is offline   Reply With Quote
Old 11-16-2008, 08:33 AM   #9
E46M3
Senior Member

E46M3's Avatar

Join Date: Jan 2007
Location: Northeast, Upstate New York
Posts: 175
Default Re: The "M" House - Razed and Rebuilt Detached Carriage House/Barn - Start to Finish

The final stages:



....primed walls, first coat of epoxy going down, soon to be flecked in grey and white.



....drying epoxy, anti slip additive and the UGloss-AF clear coat. Need to wait a few days for work to continue.



...the Bend Pack p-6-f in floor (flush mount) mid rise lift gets bolted to the floor. The flow diverter is the hole in the center between the lift pads, and gets a steel plate epoxiyed to match the floor. I start moving a few things into the space...



...the doors go on the closets and the bathroom, the Gladiator units get bolted to the strapping behind the drywall that we placed during framing - that made it easy. The M3 finally gets to drive into it's new house.





....exterior walkway gets started that ties the house and rear patio to the new garage. There's grass seed in there somewhere...



....pavers go in. These span the entire front of the barn in front of both doors.



...just back from Watkins Glen after 3 days of BMW Club Racing Certification during "October-Fest," BMW CCA's national gathering, this year hosted by our local BMW chapter in partnership with the Boston Chapter. Garage is not yet done, but pressed into active service, swapping R-compond race tires for the street tires when I got home. The lift in this shot is only about 1/3rd of the way up.





....putting studs on the rotors to replace the lug nuts, and working into the night on other car related projects.



...rear garden storage wing with the garage door up... still a mess... will need to move larger long term storage items (doors and windows) to the rafters to make room to mount all the tools on the walls, but just not done yet as of this picture.





.... two views of the "bike and toy storage wing." We start moving some stuff into the space... still working out some storage issues, and will likely make an enclosed closet area to house all the ski stuff currently stacked in the corner, but here's what it looks like as of now.



...tire storage starting to get sorted. Made a "pallet" with a white Formica base with casters and a handle for easy movement over to the lift... One of the 3, 44" wide art murals can be seen to the left in this shot. It follows the garage door up when it's opened, and is held in place by two aluminum tubes - the top tube is mounted to the garage door, while the bottom tube just acts as a weight to keep the print flat - it's not attached. (Works out real well by the way.)





...and now, just starting to make myself right at home. Anyone want a beer?

Still lots o' stuff to finish, but, close enough to post. That's all for now.
Thank's for looking.

Cheers,
E46M3
__________________


M3: Kirk Racing 4 point competition cage, Safecraft 2.5lb Halon 1211 fire bottle, Borla cat back exhaust, Shark Injector 93/8000, AFE Magnum cold air intake, Schroth Ralle 4 Pro HANS harnesses, stainless braided brake lines, ATE Super Blue brake fluid, Cobalt Friction brake pads XR1 front Spec VR rear, Totyo R888 18/265, TC Design foldable tow hooks, Rouge Engineering transmission mounts...and lots of other stuff my wife doesn't care about.
My
Garage Build Thread: The "M" House.



Last edited by E46M3; 09-11-2013 at 04:28 PM.
E46M3 is offline   Reply With Quote
Old 11-16-2008, 08:49 AM   #10
E46M3
Senior Member

E46M3's Avatar

Join Date: Jan 2007
Location: Northeast, Upstate New York
Posts: 175
Default Re: The "M" House - Razed and Rebuilt Detached Carriage House/Barn - Start to Finish





__________________


M3: Kirk Racing 4 point competition cage, Safecraft 2.5lb Halon 1211 fire bottle, Borla cat back exhaust, Shark Injector 93/8000, AFE Magnum cold air intake, Schroth Ralle 4 Pro HANS harnesses, stainless braided brake lines, ATE Super Blue brake fluid, Cobalt Friction brake pads XR1 front Spec VR rear, Totyo R888 18/265, TC Design foldable tow hooks, Rouge Engineering transmission mounts...and lots of other stuff my wife doesn't care about.
My
Garage Build Thread: The "M" House.



Last edited by E46M3; 09-12-2013 at 03:05 PM.
E46M3 is offline   Reply With Quote
Old 11-16-2008, 09:49 AM   #11
badtexasz28
Junior Member

Join Date: Dec 2007
Posts: 22
Default Re: The "M" House - Razed and Rebuilt Detached Carriage House/Barn - Start to Finish

Man that is am awesome garage/showroom.... I envy you my friend.
badtexasz28 is offline   Reply With Quote
Old 11-16-2008, 10:13 AM   #12
Stuart in MN
Senior Member

Stuart in MN's Avatar

Join Date: Sep 2005
Location: Minneapolis
Posts: 8,637
Default Re: The "M" House - Razed and Rebuilt Detached Carriage House/Barn - Start to Finish

Wow, very nice! You did a great job of documenting the project as well - the photography and text are magazine-worthy.
Stuart in MN is online now   Reply With Quote
Old 11-16-2008, 10:15 AM   #13
justinmc
Senior Member

justinmc's Avatar

Join Date: May 2006
Location: Kansas City
Posts: 2,155
Send a message via AIM to justinmc
Default Re: The "M" House - Razed and Rebuilt Detached Carriage House/Barn - Start to Finish

WOW...... thats one of the cooler setups I've seen in awhile. I like how you partitioned the space with the roll up in the middle. Makes it nice if you are working, etc and the wife goes somewhere or comes home you don't have to worry about folks cruising past seeing what you've got hidden inside.

Also....... I just have to ask. You've got a plasma, comfy chair, tools, toilet, etc... why would you ever go inside the house!?? hahaha... seriously loving this space.
justinmc is offline   Reply With Quote
Old 11-16-2008, 10:32 AM   #14
E46M3
Senior Member

E46M3's Avatar

Join Date: Jan 2007
Location: Northeast, Upstate New York
Posts: 175
Default Re: The "M" House - Razed and Rebuilt Detached Carriage House/Barn - Start to Finish

Quote:
why would you ever go inside the house!?? hahaha... seriously loving this space.
Justinmc,
Ha ha...sometimes I don't go in the house - for rather extended periods of time.
My wife's answer; that little blue box on top of the amp.
It is a wireless intercom.
Attached Images
File Type: jpg intercom-modified-100_1042.jpg (23.6 KB, 1340 views)
__________________


M3: Kirk Racing 4 point competition cage, Safecraft 2.5lb Halon 1211 fire bottle, Borla cat back exhaust, Shark Injector 93/8000, AFE Magnum cold air intake, Schroth Ralle 4 Pro HANS harnesses, stainless braided brake lines, ATE Super Blue brake fluid, Cobalt Friction brake pads XR1 front Spec VR rear, Totyo R888 18/265, TC Design foldable tow hooks, Rouge Engineering transmission mounts...and lots of other stuff my wife doesn't care about.
My
Garage Build Thread: The "M" House.


E46M3 is offline   Reply With Quote
Old 11-16-2008, 10:32 AM   #15
67pete300
Senior Member

67pete300's Avatar

Join Date: Jun 2008
Location: Burke, VA
Posts: 335
Default Re: The "M" House - Razed and Rebuilt Detached Carriage House/Barn - Start to Finish

Um...holy cow!

Just Awesome. Kudos to you on such a great project. Well done!
67pete300 is offline   Reply With Quote
Old 11-16-2008, 11:03 AM   #16
justinmc
Senior Member

justinmc's Avatar

Join Date: May 2006
Location: Kansas City
Posts: 2,155
Send a message via AIM to justinmc
Default Re: The "M" House - Razed and Rebuilt Detached Carriage House/Barn - Start to Finish

Quote:
Originally Posted by E46M3 View Post
Justinmc,
Ha ha...sometimes I don't go in the house - for rather extended periods of time.
My wife's answer; that little blue box on top of the amp.
It is a wireless intercom.

Awesome... haha. I bet the wife has some shiny new kitchen on her side of the property. Honey you can have the house.. I want the garage!
justinmc is offline   Reply With Quote
Old 11-16-2008, 11:08 AM   #17
Mussel Kar
Member

Join Date: Nov 2008
Posts: 34
Default Re: The "M" House - Razed and Rebuilt Detached Carriage House/Barn - Start to Finish

Awsome build. I'm envious because mine won't be finished for at least a year more.
I did not go to O fest but had some friends that did. A friend on mine set up the autocross course. Alex from the Boston chapter took first. I was hot on his heels at one event this summer.
Mussel Kar is offline   Reply With Quote
Old 11-16-2008, 11:12 AM   #18
TejasBimmer
Senior Member

TejasBimmer's Avatar

Join Date: Mar 2008
Location: off I-35, TEXAS!
Posts: 540
Default Re: The "M" House - Razed and Rebuilt Detached Carriage House/Barn - Start to Finish

WOW!!! Great remodel!
Love the car too!
__________________
Ciao! - - Nathan

2000-2.8L Z3 Roadster (mod'd 1st) ~ 2001 Toyota Tacoma DC 4WD Limited TRD (mod'd 2nd) ~ 2012-MINI Countryman ALL4 (NO Mods!)
BMW CCA Tejas Chapter & iZ3 Project Coordinator for the San Antonio area
TTORA and TLCA off-road wheeling member
Z3POWER.net
Member Since March 1, 2008
TejasBimmer is offline   Reply With Quote
Old 11-16-2008, 11:41 AM   #19
E46M3
Senior Member

E46M3's Avatar

Join Date: Jan 2007
Location: Northeast, Upstate New York
Posts: 175
Default Re: The "M" House - Razed and Rebuilt Detached Carriage House/Barn - Start to Finish

Mussel Kar,
I spend most of my time at road courses, but still AutoCross both the cars. Neither are at the very top of their class, (the E46M3 weighs in at around 3,400lbs) but I do it for the fun, and the car finess practice. We run at a local go cart track that has elevation changes, and at places, is actually no wider than my driveway.

The pictures attached below are of; the M staged for an autox event, as well as my daily driver - a 4 door on the cart track.

(from an earlier post)
The Barns Primary Function: I have 2 BMW 3 series, (E46's) both of which I auto-cross, and both of which have seen regular active track use at road courses such as Watkins Glen or Mosport (a nice road course in Canada.) The M3 is my current dedicated track car, and spends about 3-5 full days a month on track during the season, sometimes more when I can get extra time.

The M3 does some street drives in nice weather... "street legal, pretty much."

I can usually be found in "open track" run groups with a variety of clubs. I teach the novice orientation classroom sessions at the track for new drivers with the local BMW CCA chapter. I love the sport. My M3 doesn't need much at this point, although that doesn't stop me from playing with it. The M3's S54 engine - in stock configuration - is already wound rather tight, and produces as is - more torque per liter than any naturally aspirated production engine in the world. I really don't need to do too much mucking about under the hood to eek out power.

My garage passion started, and is fueled as a driver, and less as a mechanic, but... I do need to do some basic stuff.

Monthly - Change between R-Compound track tires and performance street tires, change brake pads from race compounds to street or between race compounds, bleed brakes before every track event, adjust car geometry and sort (ie: camber) for street and back to track, or dial in whatever I need for a given track setup, perform routine tech inspections... etc. (The garage does get dirty, just in case your wondering.)
Seasonally - Flush and swap brake fluid every 3 months, install after-market parts like chips, control arms, strut braces, CAIs, or fabricate small parts, install gauges, swap rotors, change other fluids, brake lines, clean the car up, play, putz, and generally screw around, drink a beer and wax the hood, (bugs die hard at 149-mph) - drink a beer and watch the Rolex Series. Fix small stuff. Swap snow tires for my daily driver. Store the M3 for the winter.
Maybe this decade: I am unlikely to ever pull the engine, diff, or transmission myself in this space - so this isn't really a full fledged "shop" by design. Some will see the fixed Bend-Pack lift and think; "but you can't drop the tranmission..." I respect those who do, and can. I can't, and don't. Any major project is performed by my trusted friend, an independent BMW certified master mechanic - which he is, and I am not. I can read a Bentley manual, but I pick my battles. I come at all of this from a drivers perspective right now, but maybe later.
Attached Images
File Type: jpg Jeff-Staged-at-BIMP.jpg (45.6 KB, 353 views)
File Type: jpg Jeff-1Turn-1-original.jpg (30.7 KB, 353 views)
__________________


M3: Kirk Racing 4 point competition cage, Safecraft 2.5lb Halon 1211 fire bottle, Borla cat back exhaust, Shark Injector 93/8000, AFE Magnum cold air intake, Schroth Ralle 4 Pro HANS harnesses, stainless braided brake lines, ATE Super Blue brake fluid, Cobalt Friction brake pads XR1 front Spec VR rear, Totyo R888 18/265, TC Design foldable tow hooks, Rouge Engineering transmission mounts...and lots of other stuff my wife doesn't care about.
My
Garage Build Thread: The "M" House.


E46M3 is offline   Reply With Quote
Old 11-16-2008, 12:11 PM   #20
Mussel Kar
Member

Join Date: Nov 2008
Posts: 34
Default Re: The "M" House - Razed and Rebuilt Detached Carriage House/Barn - Start to Finish

E
I used to drive Lime Rock and NHMS until April 07. Had to give it up for a while for health reasons. (all set now) Because of that I got addicted to autocross last summer, and because I was new I ended up as the door mat for every club I ran with. No so this year. Two seasons championships with 2 different Porsche clubs that use Devens.
Won my division and also took my first FTD in the vid below. Some student was at this event and made this film that the wife found on youtube. I'm the first car to run, 887.
http://www.youtube.com/watch?v=TsRLEEfwbqM
I'm going for a 2 post lift when my garage ever gets finished. Like you, I have no plans on major engine/tramsmission work. Just want something to make maint work easier.
Mussel Kar is offline   Reply With Quote
