Question Hip roof w/vaulted ceiling

Is it possible to have a building with 8' walls and still have at least a 10' ceiling in the center area?

Could trusses be manufactured to accomplish that? Most hip roofs I've seen have horizontal rafters running wall-to-wall (on the top plates) across the width of the building.
sammm is offline   Reply With Quote
Old 06-25-2010, 10:37 PM   #2
trbomax
Senior Member

trbomax's Avatar

Join Date: Mar 2010
Location: starvation lake,mi.
Posts: 2,475
Default Re: Hip roof w/vaulted ceiling

Sissor (sp?) trusses
trbomax is offline   Reply With Quote
Sponsored Links (Register now to hide all advertisements)
Old 06-25-2010, 10:45 PM   #3
portcity
Member

Join Date: May 2010
Location: AL Coast
Posts: 75
Default Re: Hip roof w/vaulted ceiling

yes, like trbomax said, scissor trusses. but you could also put a raised ceiling, or just put joist(windbeams) at 10' height
portcity is offline   Reply With Quote
Old 06-25-2010, 10:47 PM   #4
DaleK
Senior Member

DaleK's Avatar

Join Date: May 2010
Location: East-Central Ontario
Posts: 762
Default Re: Hip roof w/vaulted ceiling

Sure is. Scissor trusses are probably the most popular way but it depends how much of the area of your building you want to have the 10' ceiling and how fast you want it to get down to 8' at the walls.

Or look at some of the old hiproof barns or wood quonsets.
__________________
Mrs. Doyle: Father Crilly, Pat wants to know if he can put his massive tool in my box.
Father Ted: Now see here!
[Pat holds up a huge wrench]
Pat Mustard: It won't fit in mine
DaleK is offline   Reply With Quote
Old 06-25-2010, 10:57 PM   #5
54stude
Member

Join Date: Jul 2007
Location: Twin Cities MN
Posts: 47
Default Re: Hip roof w/vaulted ceiling

Or, look into vaulted parallel chord trusses.
http://www.trulinetruss.com/html/body_roof_truss.html
54stude is offline   Reply With Quote
Old 06-26-2010, 12:39 AM   #6
sammm
Senior Member

sammm's Avatar

Join Date: Jun 2010
Location: Texas
Posts: 518
Default Re: Hip roof w/vaulted ceiling

Thanks for the replies. The building is only going to be 16x24 (that's as big as I can fit on my property) and I'd like to be able to add a lift (MaxJax most likely) after it's built.

Any downside to having the joists at 10' vs. sitting on the top plate?

I'll check out scissor trusses too. Thanks again!
sammm is offline   Reply With Quote
Old 06-26-2010, 01:21 PM   #7
little d
Senior Member

Join Date: Nov 2009
Posts: 700
Default Re: Hip roof w/vaulted ceiling

sam, the ceiling joist, besides giving you some place to attach your ceiling to, suport your 2 outside walls from bowing out from the weight of your rafters, roof. as long as its done right, theres no reason why you cant move the ceiling joist up to 10'.
little d is offline   Reply With Quote
Old 06-26-2010, 02:27 PM   #8
skeletonizer
Senior Member

skeletonizer's Avatar

Join Date: Sep 2008
Location: Michigan
Posts: 1,242
Default Re: Hip roof w/vaulted ceiling

To help clear up a misconception... a traditional barn is not a hip roof. It is a gambrell roof.

A hip roof has no gable end, it has eaves all the way around the building.


...just sayin'
__________________
Find ethanol free gasoline near you: http://www.pure-gas.org/index.jsp

My 26' x 40' in progress... slowly:
http://www.garagejournal.com/forum/s...ad.php?t=31281

If you are from MICHIGAN click here:
http://www.garagejournal.com/forum/s...ad.php?t=53637
skeletonizer is offline   Reply With Quote
Old 06-26-2010, 04:22 PM   #9
jgoglick
Member

Join Date: Oct 2007
Posts: 42
Default Re: Hip roof w/vaulted ceiling

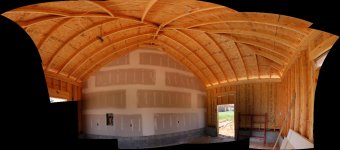

Here's mine - it's a single bay, 16x25. It has a hip roof and the ceiling is vaulted. This is a composite of seveal pics, so you have to overlook the distortion, but hopefully you'll get an idea of the inside.
Attached Images
File Type: jpg pano.jpg (89.9 KB, 169 views)
jgoglick is offline   Reply With Quote
Old 06-26-2010, 04:57 PM   #10
sammm
Senior Member

sammm's Avatar

Join Date: Jun 2010
Location: Texas
Posts: 518
Default Re: Hip roof w/vaulted ceiling

Quote:
Originally Posted by jgoglick View Post
Here's mine - it's a single bay, 16x25. It has a hip roof and the ceiling is vaulted. This is a composite of seveal pics, so you have to overlook the distortion, but hopefully you'll get an idea of the inside.
That's exactly what I want mine to look like, thanks! The size is almost the same as my plan too....I'm planning 16x24. What is the pitch of your roof?

I'm guessing your roof was all stick built? What about the sill plates? They look much beefier stacked 2x4's. Engineered beams?
Attached Images
File Type: jpg South Side elevation.JPG (141.0 KB, 49 views)
File Type: jpg Front Elevation.JPG (120.3 KB, 45 views)
sammm is offline   Reply With Quote
Old 06-26-2010, 04:57 PM   #11
sammm
Senior Member

sammm's Avatar

Join Date: Jun 2010
Location: Texas
Posts: 518
Default Re: Hip roof w/vaulted ceiling

Quote:
Originally Posted by skeletonizer View Post
A hip roof has no gable end, it has eaves all the way around the building.
That's my plan.
sammm is offline   Reply With Quote
Old 06-26-2010, 06:51 PM   #12
jgoglick
Member

Join Date: Oct 2007
Posts: 42
Default Re: Hip roof w/vaulted ceiling

Quote:
Originally Posted by sammm View Post
That's exactly what I want mine to look like, thanks! The size is almost the same as my plan too....I'm planning 16x24. What is the pitch of your roof?

I'm guessing your roof was all stick built? What about the sill plates? They look much beefier stacked 2x4's. Engineered beams?
Yup, it's stick built and is attached to the house. Sill plates are stacked 2x4's in that garage.
jgoglick is offline   Reply With Quote
Old 07-01-2010, 02:24 PM   #13
sammm
Senior Member

sammm's Avatar

Join Date: Jun 2010
Location: Texas
Posts: 518
Default Re: Hip roof w/vaulted ceiling

Bringing this one back for one more question. According to the triangle calculator I found, the finished ridge height (outside) of my building should be 14'. If it's 16' wide with a 1' overhang and an 8/12 (33.69 degree) pitch.

8' walls plus the 'a' length = 14

I supplied the 'A' angle of 33.69, and the 'b' length of 9 (1/2 width of building + 1' overhang)

Make sense?
Attached Images
File Type: jpg Roof pitch-height numbers.jpg (42.4 KB, 32 views)
sammm is offline   Reply With Quote
Old 07-01-2010, 03:34 PM   #14
twostory
Senior Member

Join Date: Dec 2005
Location: Duluth, Georgia
Posts: 554
Default Re: Hip roof w/vaulted ceiling

Quote:
Originally Posted by sammm View Post
Bringing this one back for one more question. According to the triangle calculator I found, the finished ridge height (outside) of my building should be 14'. If it's 16' wide with a 1' overhang and an 8/12 (33.69 degree) pitch.

8' walls plus the 'a' length = 14

I supplied the 'A' angle of 33.69, and the 'b' length of 9 (1/2 width of building + 1' overhang)

Make sense?
yes it does, (inverse tan)(8/12) = 33.69 degrees

BTW, your roof rafter will need to be 10.81 ft

9 / cos(33.69) = 10.81
twostory is offline   Reply With Quote
