I am learning to use my Triplet analog meter and not doing well at it. I am testing a 9v battery to measure voltage. So if I read the scale correctly it is saying 12v (I have set the main switch/scale at 12v DCv).

If I use my digital craftsman then it says 9v. So what am doing wrong here?

Mike


Attachments

  • IMG_0873.jpeg
    468.7 KB · Views: 178
  • IMG_0875.jpeg
    864.9 KB · Views: 174
  • IMG_0876.jpeg
    532.4 KB · Views: 114
To avoid these ads, REGISTER NOW!
OP
1

1930artdeco

Well-known member
Joined
Dec 28, 2010
Messages
1,099
Location
Lynden, Wa
Got it. Misunderstood the instructions. Didn’t realize there were two other lines under that lower one. Thank you,

Mike

R

rlitman

Well-known member
Joined
Oct 18, 2010
Messages
24,584
Location
Long Island
PCustoms said:
Looks like a hair over 9.5V

Click to expand...
There's a parallax issue that we can see in the mirror on the scale. To my eye, I believe that if the camera were placed so that the needle would obscure it's reflection (as it is supposed to be read), the reading would be OVER 9.6VDC, even though it's just under the line for 9.6 right now. Whether it would fall closer to 9.6 or 9.7 is hard to say.

B

Beerhippie

Well-known member
Joined
Oct 13, 2023
Messages
9,679
Location
Far NE Oregon
For those not old enough to have used these meters 50 or 60 years ago, that's a parallax-correcting scale.

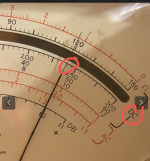

1000002965-png.2466960


See the mirror strip just above the red circle where you can see a reflection of the needle? The trick is to line the needle and the reflection up by moving your head or the meter. Then you can be sure you're looking at the needle and scale head-on, eliminating parallax.

Last edited:
S

Schurkey

Well-known member
Joined
Oct 27, 2011
Messages
2,368
Location
The Seasonally Frozen Wastelands
Is that meter reading "open circuit" (no-load) voltage, or is it providing some calibrated load to the battery?

Testing lil' batteries (or cells) like that without a load on them is kinda useless. A battery (or cell) near the end of it's life can measure OK with no load, but fall flat on it's little keister with even a small load.
