Scissor lift installed this weekend

[autoclassicnut]

It's a 1988 Omer Vega scissor lift for wheel alignments. I posted this when I first picked this up in May 2010. Finally got it dragged in and after a week of figuring it out, I got it plumbed and works like a champ! That's a big relief off of my worries. I bought it o craigslist and of course the guy says it works...He was right.



[autoclassicnut]

Gave it a try with my Ford Ranger first...



[autoclassicnut]

Here's the bonus jacks that lift the axles separate if needed... 2 lifts in one.



[bazzateer]

Cool!



[akdiesel]

Are you planning on putting it flush with the floor or just as it is?
I have only seen those lifts online and wondered what is the lifting and locking source. Looks like a lot of force is applied to hold the legs up in that angle.
Any way glad to hear you got a good deal on CL.



[bchee]

mount in ground?



[Jack Olsen]

Is it three phase?

I'm guessing from the width of the track that it's got a pretty serious capacity. The parallelogram design doesn't seem like it should work, to my uneducated mind. But clearly it works great:

<iframe width="480" height="390" src="http://www.youtube.com/embed/-yCZURXPC9A?rel=0" frameborder="0" allowfullscreen></iframe>



[jamesemery728]

Very nice looking lift. One of the hidden benefits of those is the wide track that you drive on can be used as a table/bench to put all the parts on when you are taking something apart without having to bend over constantly.



[autoclassicnut]

Are you planning on putting it flush with the floor or just as it is?
I have only seen those lifts online and wondered what is the lifting and locking source. Looks like a lot of force is applied to hold the legs up in that angle.
Any way glad to hear you got a good deal on CL.

I'll get some pictures of the locking mechanism... very stout...



[autoclassicnut]

I was wondering the same thing. When are you gonna cut the concrete and mount it in the ground?

My space is 30' x 80'. So it's not that cramped for space. (Also there aren't any cracks or bad spots in the whole floor, so I'm not going to create any problems, if you know what I mean.



[autoclassicnut]

Is it three phase?

I'm guessing from the width of the track that it's got a pretty serious capacity. The parallelogram design doesn't seem like it should work, to my uneducated mind. But clearly it works great:

<iframe width="480" height="390" src="http://www.youtube.com/embed/-yCZURXPC9A?rel=0" frameborder="0" allowfullscreen></iframe>

Single phase, It is a weird feeling the first time I watched it go up. It seems as if it would tip over forward or something.



[autoclassicnut]

Very nice looking lift. One of the hidden benefits of those is the wide track that you drive on can be used as a table/bench to put all the parts on when you are taking something apart without having to bend over constantly.

I used it for just that as I was figuring out how to hook it up. Great adjustable workbench!



[autoclassicnut]

Are you planning on putting it flush with the floor or just as it is?
I have only seen those lifts online and wondered what is the lifting and locking source. Looks like a lot of force is applied to hold the legs up in that angle.
Any way glad to hear you got a good deal on CL.

Here's the locking and lifting source pictures...



[autoclassicnut]

It only had 2 guards on the axle jacks in the center, so I made 6 more out of some diamond plate scraps that were laying around. That will keep fingers from the rollers.



[akdiesel]

Thanks for the pictures. Its still a little hard to see how it works but I get the idea.
Ive never seen one support the load on its own cylinder. Never the less it is still amazing at how much force the hydraulic actuators can produce at those angles.



[autoclassicnut]

Here's the locking and lifting source pictures...

The picture on the left shows the stops engaging because of the weights on the arms...the third picture on the right shows the small cylinder activated which lifts the weighted side (right) of the arms thus releasing or pushing the left side of the arms down below the large cylinder, allowing the lift to go down past the stops



[nperkins]

Thats a nice setup. Mind if i ask what you got it for? Or is it going to make me want to cry lol



[autoclassicnut]

$750 as seen here in my post in 2009, when first purchased.

http://garagejournal.com/forum/showthread.php?t=44739



[autoclassicnut]

Here's the control console for the lift.
When pushing the lift into the shop with the forklift, the console was strapped down to the lift, but with the movement, slid off to the concrete floor...
After restarting my heart, i realized that the cover (plastic) would need to be replaced. So i made a clear cover for it.



[nperkins]

damn... Im sooo jealous... Thats a steal



[vungoc]

hello,

I am interested your lift installation.
I want know how to seperated there ramps for transport ?

Thanks



[autoclassicnut]

http://www.omerlift.com/en/installation/,131 this is the website more info may be found... hope that helps

also http://www.hoffmanservices.com/wp-content/uploads/2011/01/Omer_Parallelogram_Lift.pdf


http://www.omerlift.com/all/low-VEGA_ponti_pesanti_18maggio2011123.pdf



[Strouty]

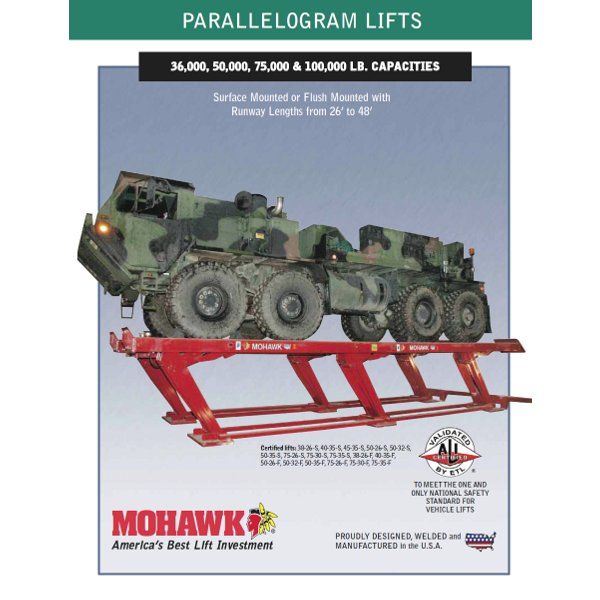

Mohawk makes them up to 100k pound capacity.



[pjskot]

Any chance you could take a pic of the hyd lines coming out of control unit. I have the same lift, its not going down properly.
