Yet Another Whatzit

[Outlawmws]

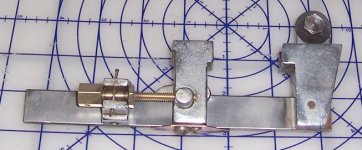

I picked this up last weekend partly to find out what it is for.

I'm pretty sure its for aligning two pieces in the Vee's and adjusting them, possibly for a gap. The hex nut above the Vee's is likely to hols a scale but not a std 1/2 or 3/4" wide common steel scale.

But what was it's specific use?



[ddawg16]

I thought everyone had one of those..............



[Outlawmws]

Really? Post pics of yours!



[Outlawmws]

One odd bit about this: No obvious way to clamp anything into the Vees...



[ADSR]

No idea!

Sub'd



[Bigplum]

I've used something similar on a shadow graph machine , used to measure run out on small shafts etc,
Shadow graphs were large optical magnifiers , looked a bit like a sonar display.
