Let's see your vintage drill bit indices
- Thread starter Davefr
- Start date
d42jeep
Well-known member

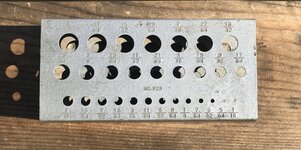

It looks like RTM has a couple of these HUOT fractional indIcies but this one I spotted at yesterday’s Berkeley estate sale was the first I’d seen in person. It came with some bits which I made sure were sharp and added a few others. Looks like I need to find some larger bits at an upcoming sale in order to finish filling it up.Hey all, while kicking around PDX area last Saturday, I found a Huot drill bit index, in fractional sizes. Was quite pleased, cuz I think I have three in numbered sizes, and I don't need that many. Not terribly spectacular in this thread, either by shape or manufacturer, or maybe even not very vintage.
-Don
As found
Cleaned up
Added some bits to the ones it came with.
It‘s not fancy but another for the collection.
Last edited:
d42jeep
Well-known member
Here is a General number drill bit index that I found today at a garage sale. I think that General was supplying this style of index to Sears, if I remember correctly.
-Don
-Don
RTM
Well-known member
Yup, mine is here. Linked in this thread too
Show your “Crowntop” Craftsman
Thanks to JoCo‘s 1967 catalog clip, I had a good idea of how to proceed with the Crown set I picked up yesterday. I spent the morning cleaning the box and the tools. I then went through my Craftsman spares and came as close as I could to duplicating that set. I feel like I was able to come...
www.garagejournal.com
Outlawmws
Well-known member
d42jeep
Well-known member
This Huot index that I found on Friday is fairly unremarkable other then being pretty well loaded with number bits. They will allow me to fill up some more interesting indices.
-Don
-Don
RTM
Well-known member
don long
Well-known member
I found a small index that ranges from 1/16 to 1/4
I'll clean it up and put it with my collection tomorrow
I'll clean it up and put it with my collection tomorrow
454ragtop
Well-known member
I like those, not as fancy as the cool ornate cast ones, but they work out well mounted to a machine. I have a couple, one mounted on a Delta 17" drill press, another mounted on one of my lathes.It looks like RTM has a couple of these HUOT fractional indIcies but this one I spotted at yesterday’s Berkeley estate sale was the first I’d seen in person. It came with some bits which I made sure were sharp and added a few others. Looks like I need to find some larger bits at an upcoming sale in order to finish filling it up.
-Don
As found
Cleaned up
Added some bits to the ones it came with.
It‘s not fancy but another for the collection.
d42jeep
Well-known member
Here is a Standard index I picked up yesterday at an estate sale. I put all of the bits in the “to be sharpened” pile.
-Don
As found
Slightly cleaner
-Don
As found
Slightly cleaner
crguy
Well-known member
It's the fancy cast ones like that Cleveland that make an interesting collection.I have a few I acquired over the years.
d42jeep
Well-known member
The tiny Huot number indices are cool and I like the logo on your New York index. I filled up my new Standard set with sharpened bits and added a couple of bits to my other plain Jane index. Some of my indices are for looking at, others are for actually using.I have a few I acquired over the years.
-Don
Basement display
Last edited:
Private Lugnutz
Well-known member
Hooah! First thing this here lowly buck private noticed! (For the uninitiated, that's a Staff Sergeant in the US Army or Marine Corps.)
four.cycle
Well-known member
h~moto
Well-known member
It'd be awesome to scare up a drill bit that was marked that way.
tombell572
Well-known member
Interesting--at least you don't have to go through the exercise of converting fractions.
Tom B.
Tom B.
crguy
Well-known member
What?
It looks like RTM has a couple of these HUOT fractional indIcies but this one I spotted at yesterday’s Berkeley estate sale was the first I’d seen in person. It came with some bits which I made sure were sharp and added a few others. Looks like I need to find some larger bits at an upcoming sale in order to finish filling it up.
-Don
As found
Cleaned up
Added some bits to the ones it came with.
It‘s not fancy but another for the collection.
They have these Hout stands new on their hang cards at a local store. I started with them before I found vintage ones.
Private Lugnutz
Well-known member
A very nice contribution to the ever-swelling ranks of Morse/Ajax/et al folding triangular indexes and the kind of design that invokes the "elegant" adjective from engineers, this one included, for its balance of function, beauty, and efficiency.
454ragtop
Well-known member
While I love all the cool vintage drill indices, those stamped sheet metal stands are great for mounting to machines. I have one attached to one of my drill presses, and another mounted on the headstock of one of my lathes.They have these Hout stands new on their hang cards at a local store. I started with them before I found vintage ones.
four.cycle
Well-known member
remarkably similar, yes.
now if somebody could just yell me who made this "Acorn" model:
Attachments
Outlawmws
Well-known member
I believe this was discussed and the patent assignee was the most likely MFG for all IIR
Private Lugnutz
Well-known member
I don't remember seeing any patent info before, Outlaw.
I posted an Ajax version back on page 10, linked here, followed immediately by some research I had done at that time, including an excerpt from a 1906 trademark registry indicating that an Ajax Mfg Co in Cleveland was making all kinds of things related to twist drills and drilling. From that excerpt and info we supposed that they may have been the Mfgr, for themselves, and for Morse, and whatever Acorn refers to, which are obviously very similar if not identical. But again, I don't recall seeing any patent information, primarily because I don't recall anyone posting an example of a Morse, an Ajax, or any other folding triangular index with a patent number or date on it.
That changed with @ecotec now reporting on the GS thread that his Morse version is marked "PAT. AUG. 7. 1906."!
I found the patent (T.B. Powers / 828,051) under "Drill-holder, Portable" inside the Annual Report of the Commissioner for Patents for the Year 1906.
Note that it was not assigned to any company. If Ajax or Morse were making them, they either bought him out or he was licensing the rights. I have not looked into that.
If it's been posted before, sorry, I missed it.
Outlawmws
Well-known member
I may not have remembered right -which was why I qualified: "IIR" - I thought I remembered us coming to a conclusion of who was the MFG, but not exactly who.
d42jeep
Well-known member
Private Lugnutz
Well-known member
Gotcha. I was just making sure we were talking about the same prior discussion, hence my reiteration and summary in case I had missed a different one. Ajax Mfg still seems very plausible to me. Knowing who owned the patent is neat, and it may help solve this one completely, eventually, but since it was unassigned, we're still left postulating.
d42jeep
Well-known member
A friend from Folsom came by yesterday to ride to a memorial with us and she brought a gift from her husband for me. It was a General number drill index with the three moving levels. These have been seen before, some on the Craftsman crown thread because General was supplying them to Sears.
The black blobs were removed with a thumbnail.
Here is RTM’s Craftsman Crown version
They were patented in 1942.
-Don
The black blobs were removed with a thumbnail. Here is RTM’s Craftsman Crown version
They were patented in 1942.
-Don
twistedstang
Well-known member
My first but not my last. Now I need to get it loaded with bits and find a place for my 1955 King Seeley Craftsman benchtop drillpress to stay.
Last edited:
Southern83
Well-known member
My eBay score from a few months ago. Two bits might have been used once. I like the box as much as the index.INSP380
Well-known member
INSP380
Well-known member
d42jeep
Well-known member

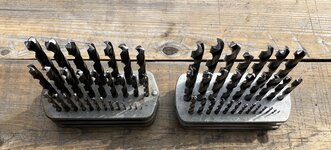

I grabbed these two dirty indices on Friday because they were close to complete with bits
One was marked with a patent number and I was able to send a photo to Datamp
The other index was unmarked and was mostly filled with German bits.
All the bits went into the evaporust and the dull bits got sharpened.
-Don
One was marked with a patent number and I was able to send a photo to Datamp
The other index was unmarked and was mostly filled with German bits.
All the bits went into the evaporust and the dull bits got sharpened.
-Don
INSP380
Well-known member
INSP380
Well-known member
Beerhippie
Well-known member
Since we don't seem to have an "extractor indexes" thread, and they go with drills:
The # 3 and 5 are Ezy-Out brand that come in the box. The rest are fill-ins from my working collection. I'll have to keep my eyes out for the #1, 2 and 4 when I'm out picking.
The # 3 and 5 are Ezy-Out brand that come in the box. The rest are fill-ins from my working collection. I'll have to keep my eyes out for the #1, 2 and 4 when I'm out picking.
Outlawmws
Well-known member
Very cool! I've see and have some plastic/vinyl packs, but I've not seen a metal box for extractors.
